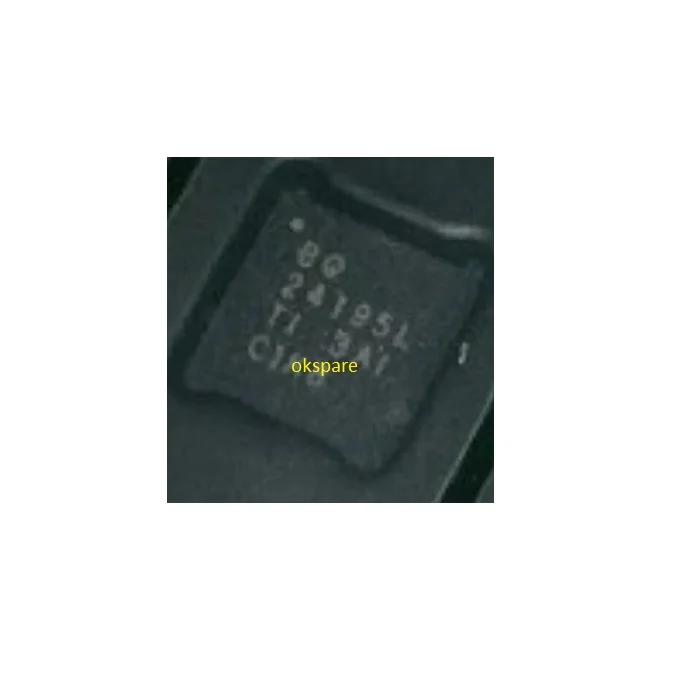

BQ24195L BQ24195 24195L BQ24195LRGER BQ IC Chip VQFN-24

Reviews

Category: BQ ICs

Availablity : In stock
Shipping : Yes

Description

The BQ24195L BQ24195 24195L BQ24195LRGER BQ IC Chip VQFN-24 are highly integrated switch-mode battery charge management and power path control ICs, designed for single-cell Li-Ion and Li-Polymer battery systems. These devices intelligently manage system power and charging, ensuring efficient performance even under varying load conditions.

The BQ24195 series supports a wide range of input sources, including standard USB host ports, USB charging ports, and high-power DC adapters. To determine the default input current limit, the device automatically detects the connected source in compliance with the USB Battery Charging Specification 1.2. Both models meet USB 2.0 and USB 3.0 power standards, featuring precise input current and voltage regulation. They also support battery boost mode, delivering 5.1 V on the PMID pin with a minimum output current of 1.0 A (BQ24195L) or 2.1 A (BQ24195).


Specification

Technical Summary

  • Input Voltage Range: 3.9 V to 17 V
  • Output Charge Current: Up to 4.5 A
  • Power Path Management with High-Efficiency Switching
  • USB 2.0 / 3.0 and BC1.2 Compliant
  • Boost Mode Output: 5.1 V, 1 A / 2.1 A
  • I²C Control Interface
  • Integrated Safety Features: OVP, OCP, and Thermal Regulation
  • Compact 24-pin 4×4 mm QFN Package

At OKSpare, your reliable Delhi Nehru Place supplier, we provide original BQ24195 and BQ24195L ICs, tested for quality and functionality before dispatch. With 15 years of experience in the IC industry, OKSpare ensures authentic components, consistent availability, and fast nationwide delivery.
