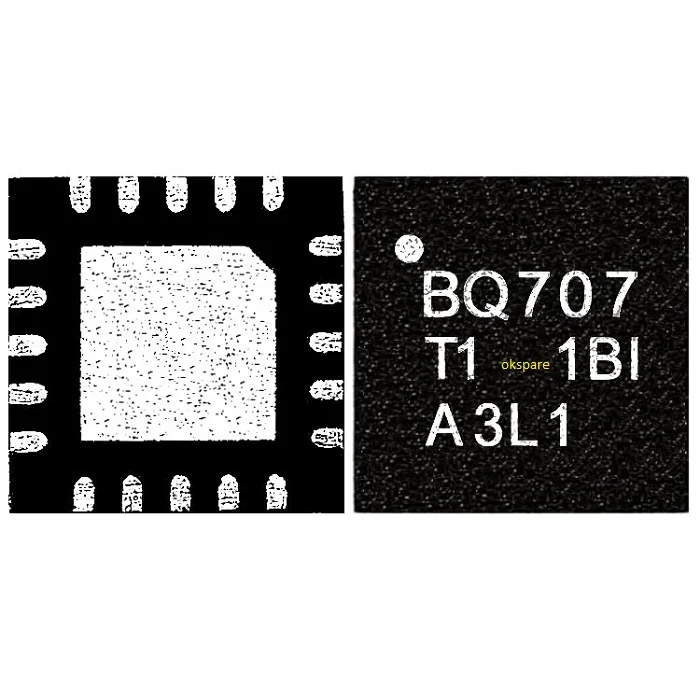

BQ24707 BQ707 BQ 24707 IC with SMBus Control
Reviews
Category: BQ ICs
Description
The BQ24707 BQ707 BQ 24707 IC is a multi-cell synchronous charger IC with SMBus control. It offers ±0.5 % voltage regulation accuracy and ±3 % current regulation, supports up to ~8 A charge current (depending on design), and includes system power path logic. It’s suitable for mid-range laptops requiring flexible, programmable charging.
Specification
BQ24707 BQ707 BQ 24707 IC with SMBus Control 1-4 Cell Li+ Battery SMBus Charge Controller With Independent Comparator and Advanced Circuit Protection SMBus Host-Controlled NMOS-NMOS efficiency, synchronous battery chargers, offering low Synchronous Buck Converter With Programmable component count for space-constrained, multi- 615 kHz, 750 kHz, and 885 kHz Switching chemistry battery charging applications. FrequencyAC Adapter Operating Range 5 V to 24 V 20-pin 3.5 mm × 3.5 mm QFN Package
