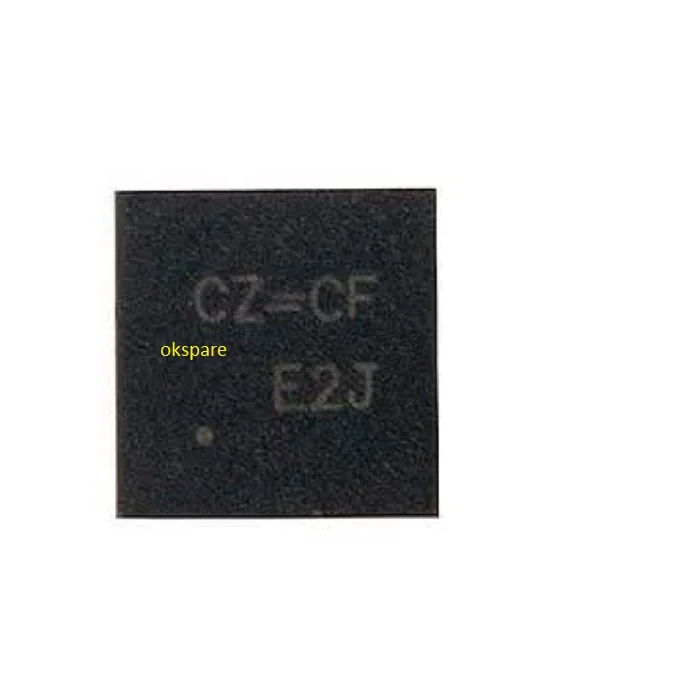

RT8561AGQW RT8561A CZ=BJ CZ= Marking CZ=IC QFN24

The RT8561AGQW RT8561A CZ=BJ CZ= Marking CZ=IC QFN24 is a 40V 8-channel LED driver IC capable of delivering up to 30mA per channel, supporting up to 80 LEDs (10 per channel at 3.6V each). It operates as a current-mode boost converter at 1MHz, with a wide input range of 6V–24V and a 2.5A internal switch. The IC maintains a stable 0.6V LED reference and includes auto-adjustment for voltage mismatches between strings. It also detects and isolates broken or unconnected LED strings, preventing overvoltage issues.

With 1.5% current matching accuracy, the RT8561A supports both analog and PWM dimming, offering flexibility and reliability for display backlighting and lighting applications.

At OKSpare, your trusted Nehru Place supplier, we provide genuine RT8561A (CZ=) LED driver ICs with top quality, best prices, and fast nationwide delivery.
