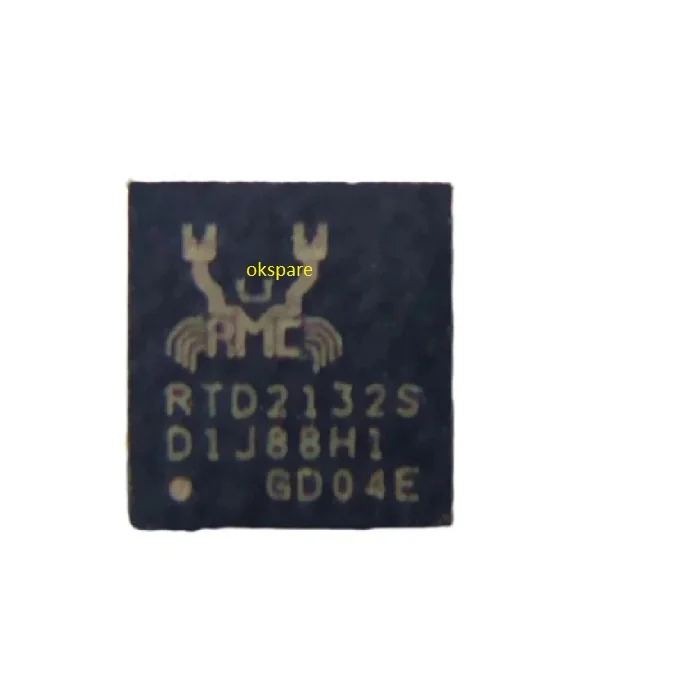

RTD2132S RTD2132SC Display Interface Converter IC

RTD2132S / RTD2132SC is a DisplayPort to LVDS interface converter IC developed by Realtek Semiconductor. It is designed to bridge modern DisplayPort sources to LVDS display panels, commonly used in monitors, all-in-one PCs, and embedded systems.

This IC supports DisplayPort v1.1a input and provides a dual-channel LVDS output, offering flexible resolution options up to 1920×1200 (WUXGA). It integrates a microcontroller unit (MCU) for EDID management and power sequencing, reducing external components and simplifying system design.

The RTD2132 series features low power consumption, embedded LVDS transmitter, on-chip PLL, and spread spectrum clocking to minimize EMI. Available in compact LQFP / QFN packages, it ensures cost-effective and space-efficient display interface conversion solutions.
