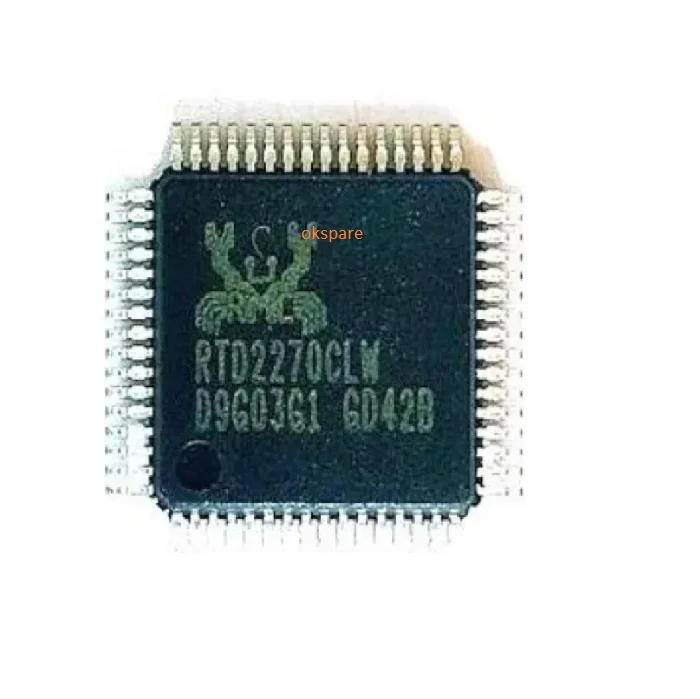

RTD2270 RTD2270LW IC LQFP-64

This advanced RTD2270 RTD2270LW IC LQFP-64 chip integrates several key features for display and system control. It includes an Embedded Display Data Channel (DDC) that supports the DDC1, DDC2B, and DDC/CI standards for communication between the display and the graphics source. At its core, the device houses a single Microcontroller Unit (MCU), complete with a Serial Peripheral Interface (SPI) flash controller for configuration and firmware storage. Simplifying the clocking architecture, it requires only one external crystal to generate all necessary internal timing signals. System reliability is enhanced by a Programmable Internal Low-Voltage-Reset (LVR) function.

For flexible control, the IC RTD2270 RTD2270LW IC LQFP-64 offers six high-resolution PWM output channels with a wide, selectable PWM frequency range. It is capable of processing input video formats up to Full HD (FHD) resolution. Finally, the chip incorporates an Embedded Bipolar Junction Transistor (BJT) control circuit, allowing it to effectively replace an external 1.2V voltage regulator, streamlining the power management design.
