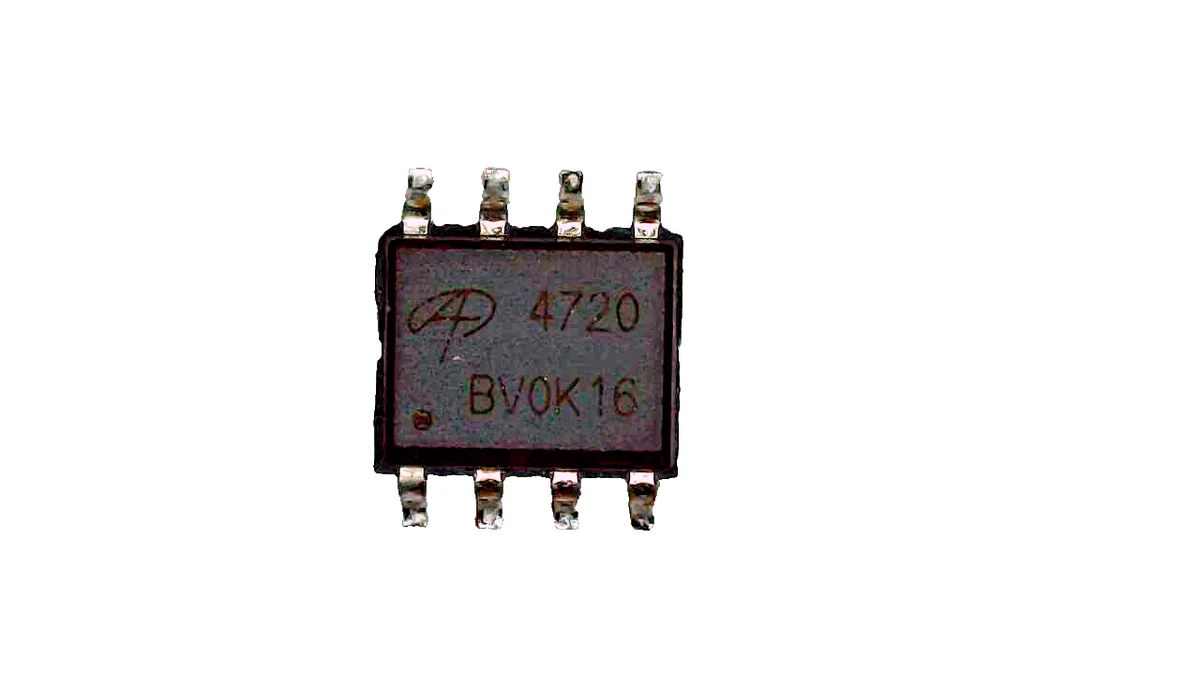

AO4720 N-Channel MOSFET
Reviews
Category: MOSFET
Description
The AO4720 is a high-efficiency N-Channel MOSFET built using advanced trench technology for superior performance in low-voltage, high-current switching applications. With an ID rating of 13A (VGS = 10V), it delivers low RDS(on), fast switching, and excellent thermal characteristics, making it suitable for laptop motherboards, charger circuits, DC-DC converters, and battery management modules. The AO4720 operates efficiently in compact PCB layouts, offering reliability under dynamic load conditions and reducing heat dissipation in power-intensive designs. It is commonly used in load switching, adapter input protection, and VRM power stages. OKSpare offers IC ready stock OKSpare, IC supplier OKSpare, and IC available at OKSpare, providing genuine MOSFETs at the best price, all quality tested by the OKSpare team.
Specification
• Advanced trench MOSFET optimized for high current
• 13A rating at VGS = 10V
• Low RDS(on) for efficient power conduction
• Fast switching ideal for DC-DC and VRM circuits
• Strong thermal stability for laptop motherboard designs
• Suitable for battery, charger, and DC-in switching
