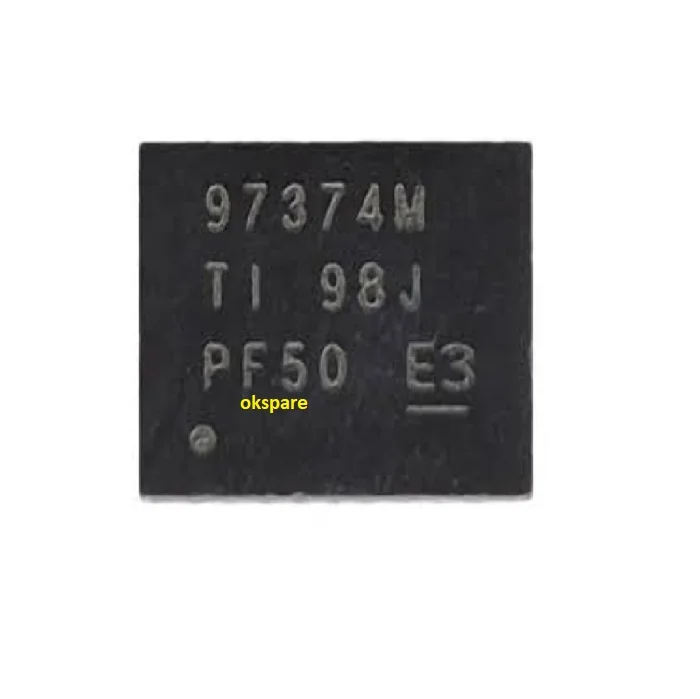

CSD97374Q4M NexFET Power Stage
Reviews
Category: Texas Instruments ICs
Availablity : In stock
Shipping : Yes
Description
The CSD97374Q4M NexFET™ synchronous buck power stage is a high-performance integrated MOSFET + driver solution used in modern high-current DC-DC converters. Optimized for ultrabooks, notebooks, DDR memory rails, and CPU/GPU core supply power stages, it delivers outstanding power density with efficiency above 92% at 15A. With built-in diode emulation and ultra-low quiescent current mode, this IC supports advanced low-power standby functions in Windows-powered devices.
Specification
- Product Name :- CSD97374Q4M Synchronous Buck NexFET™ Power Stage
- Manufacturer :- Texas Instruments
- Output Current :- 25A continuous / 60A peak
- Input Voltage :- Up to 24V
- Efficiency :- >92% @ 15A load
- Switching Frequency :- Up to 2 MHz
- Control Signal :- 3.3V & 5V PWM compatible
- Operating Modes :- Diode Emulation, FCCM, ULQ low-power mode
- Protections :- Shoot-through protection, integrated bootstrap diode
- Package :- SON 3.5mm × 4.5mm (high-density low-inductance)
- Main Use :- Laptop DC-DC VR power, DDR power, networking, telecom POL converters
- Stock :- Ready Stock in Nehru Place, Delhi
- Condition :- New & Properly Packed
- Warranty :- Testing Warranty
- Quality Test :- Verified by OKSpare Technical Team
