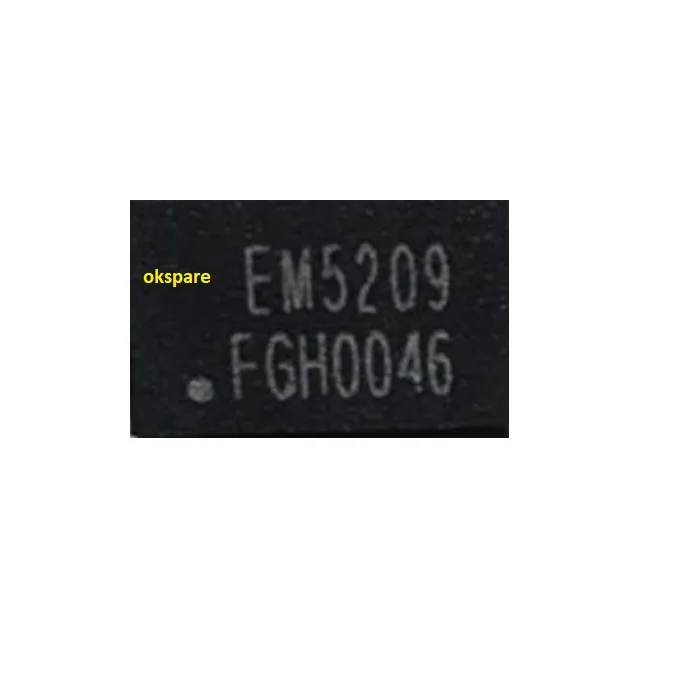

EM5209 Power Distribution Switch IC
Reviews
Category: SMD IC
Availablity : In stock
Shipping : Yes
Description
The EM5209-QFN-14 is a current-limited high-side power switch IC designed by Excelliance MOS Corporation.
It safely distributes 5 V USB or system power while providing over-current, short-circuit, and thermal protection.
Its compact QFN-14 pinless package offers excellent thermal efficiency and small PCB footprint, making it ideal for laptop USB ports, charging lines, and power-rail control.
The EM5209 features a low ON-resistance MOSFET and built-in fault flag output for intelligent power monitoring.
Specification
Technical Summary:
- Manufacturer: Excelliance MOS Corporation (E-MOS)
- Model: EM5209-QFN-14
- Input Voltage: 2.7 V – 5.5 V
- Output Current: Up to 2 A (typ.)
- Protections: Overcurrent, Thermal Shutdown, Soft-start
- Package: QFN-14 (pinless)
- Applications: Laptop USB power control, tablet chargers, DC load switching
