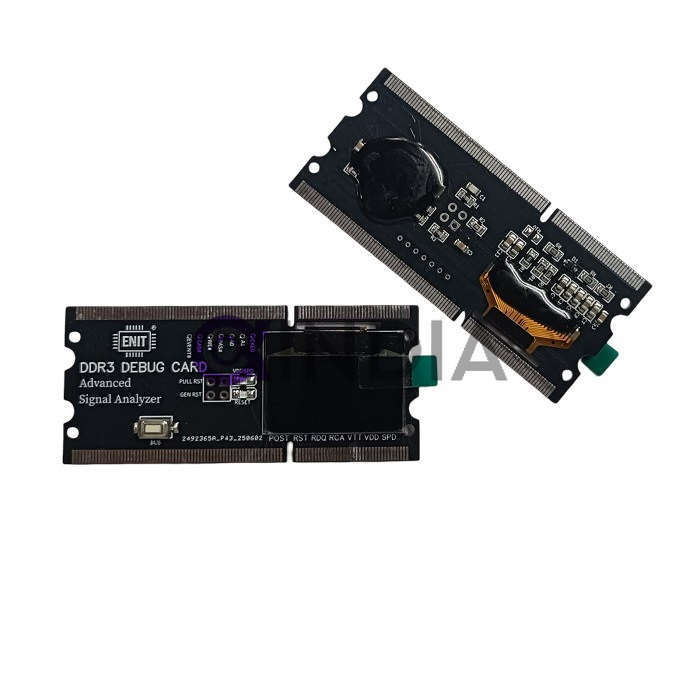

ENIT DDR3 Debug Card Advanced Signal Analyzer Diagnostic

The ENIT DDR3 Debug Card is Advanced Signal Analyzer Enit Diagnostic Card a compact diagnostic tool designed for fast and accurate motherboard repair, especially for identifying RAM-related and power delivery issues in laptops. Only for DDR3 Slot easy fit , its exact RAM-size easy to fit in slot. The built-in LCD displays real-time voltage and signal data, while LED indicators quickly show voltage presence like VD SPD and VPP. Test points allow technicians to probe signals and voltages using a multimeter or oscilloscope, making it ideal for chip-level diagnostics. Common issues such as no display, missing RAM voltages, or signal line problems can be quickly identified without replacing RAM repeatedly. Display codes like “FF” or “FLOAT” help pinpoint faults like CPU-RAM communication failure or pulled-down signals. Key voltages such as VDD, VTT, VREF, and VPP are monitored live. Easy to use—just insert before powering on, press from the middle, and ensure the LCD faces upward. Perfect for laptop service engineers, chip-level repair labs.
