Description

The NB671GQ-Z NB671G AE* MPS IC Marking AESE AESF AESD AESG AEAE AEAD from Monolithic Power Systems (MPS) is a high-performance, fully integrated synchronous buck (step-down) DC-DC converter IC designed for wide-input applications requiring compact, efficient power delivery.

AESE NB671GQ-Z QFN-16 3x3
AESF NB671LGQ-Z QFN-16 3x3
AESD NB671AGQ-Z QFN-16 3x3
AEAE NB671LGQ-Z QFN-16 3x3

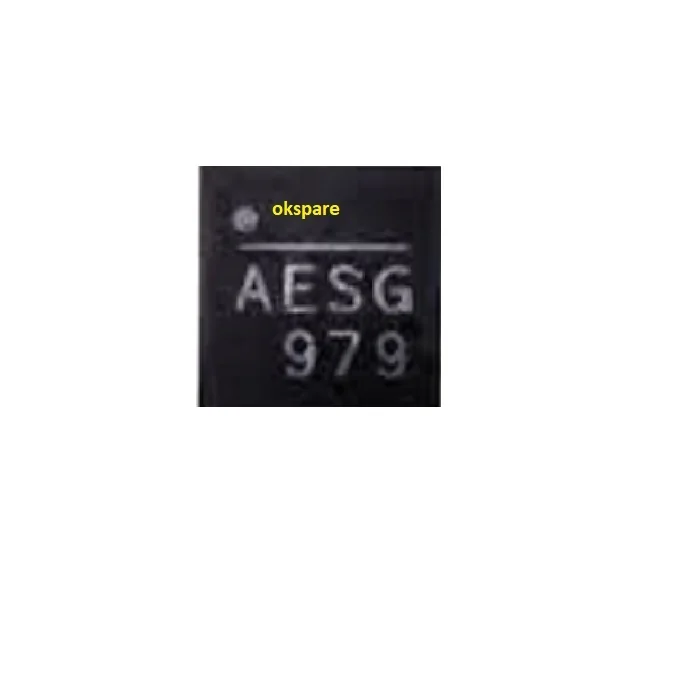

AESG NB671GQ-Z QFN-16 3x3
AEAD NB671AGQ-Z QFN-16 3x3
AEAC NB671AGQ-Z QFN-16 3x3

Specification

Key Technical Specifications:

Input Voltage Range: 5V to 24V (some variants up to 22V nominal)
Output Current: 6A continuous, 9A peak
Control Mode: Advanced Constant-On-Time (COT) for ultra-fast transient response and simple loop stabilization
Efficiency: High efficiency (>90% typical) across wide load range, with low RDS(ON) integrated high-side/low-side MOSFETs (35mΩ/18mΩ typical)
Switching Frequency: Programmable up to 500kHz typical
Package: Compact QFN-16 (3mm × 3mm)
Protections: OCP (valley current limit), OVP, UVLO (4.6V typical), thermal shutdown (160°C), open-drain Power Good indicator
Features: Forced CCM or automatic PFM/PWM for light-load efficiency, minimal external components (as few as one inductor + capacitors)
