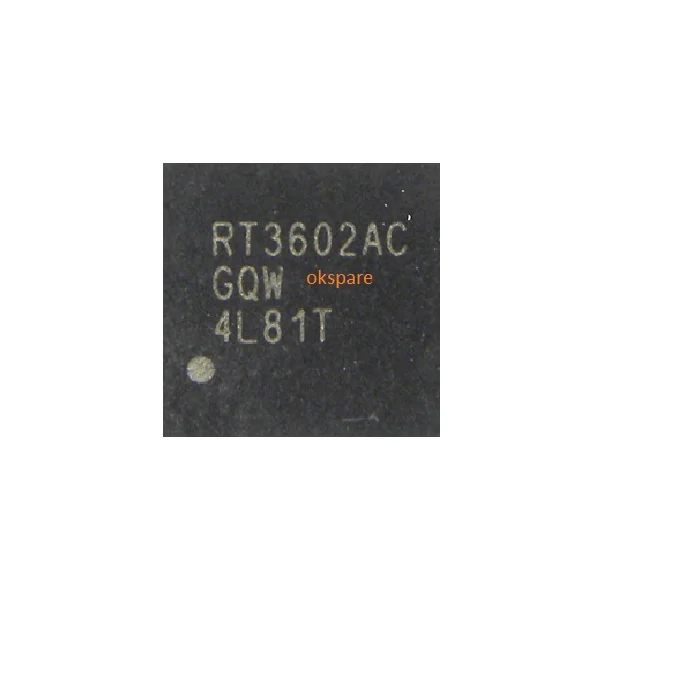

RT3602AC IC CPU Power Controller WQFN-52
Reviews
Category: RT IC Richtek
Description
The RT3602AC Charging IC is an IMVP8-compliant CPU power controller designed for Intel-based platforms, delivering reliable and efficient multi-rail voltage regulation. It integrates three voltage rails, including a 2/1-phase synchronous Buck controller (MAIN VR) and a single-phase Buck controller (AUX VR) for auxiliary power.
The RT3602AC provides VR Ready output signals and advanced protection features such as Over-Voltage (OV), Under-Voltage Lockout (UVLO), Over-Current (OC), and Negative Voltage (NV) protection. These functions ensure safe and stable CPU power delivery under varying load conditions.
With its compact WQFN-52L (6x6mm) footprint, this controller is ideal for notebooks, desktops, and embedded computing systems requiring precise voltage management and high efficiency.
Specification
Technical Summary:
- Model: RT3602AC
- Type: CPU Power Controller IC
- Compliance: IMVP8
- Voltage Rails: 3 (2/1-phase Main VR + 1-phase AUX VR)
- Protection: OV, NV, OC, UVLO
- Signals: VR Ready Output
- Package: WQFN-52L (6x6mm)
- Applications: Intel CPU platforms, desktop and notebook motherboards
