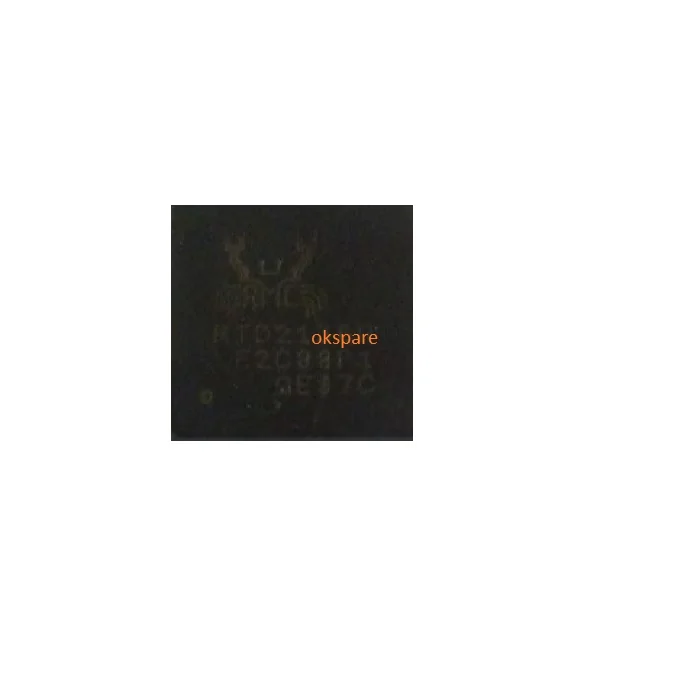

RTD2135R Display Interface IC
Reviews
Category: Realtek IC
Description
The Realtek RTD2135R Display Interface IC is a high-performance eDP to LVDS converter designed to connect modern embedded DisplayPort (eDP) sources with legacy LVDS display panels. It efficiently translates eDP video signals into LVDS format, allowing newer systems to drive traditional LCD panels without loss of quality or timing accuracy.
The RTD2135R supports various resolutions, including Full HD (1920x1080) and beyond, and offers flexible color depth and panel configuration options. It integrates advanced timing control, programmable EDID, and automatic link training for reliable display connectivity.
With its compact design and low power consumption, this IC is ideal for laptops, industrial displays, and embedded systems that require eDP-to-LVDS signal conversion.
Specification
Technical Summary:
- Model: RTD2135R
- Manufacturer: Realtek
- Type: eDP to LVDS Converter IC
- Function: Converts eDP input to LVDS output
- Resolution Support: Up to Full HD (1920x1080)
- Features: EDID support, timing control, low power design
- Applications: Laptops, LCD monitors, embedded and industrial displays
