The RTS5450 is an advanced Type-C Power Delivery Controller that integrates all Type-C Channel Configuration (CC) functions, Power Delivery functions (including BMC PHY, protocol, policy engine and device policy manager), 10Gbps high speed MUXs, low speed MUX, billboard device, AUX/HPD detection blocks, and VCONN switches with overcurrent protection into a single chip. It also builds in a high-speed switch to implement billboard device functions. The AUX and HPD detection blocks are used for detecting DP cable hot plug and HPD signals in order to support the DisplayPort Alt mode. New features in the PD3.0 specification, e.g., Fast Role Swap, Extended Message transmission, PD FW update and more, are implemented in the RTS5450.
Roll over image to zoom inTap image to zoom in

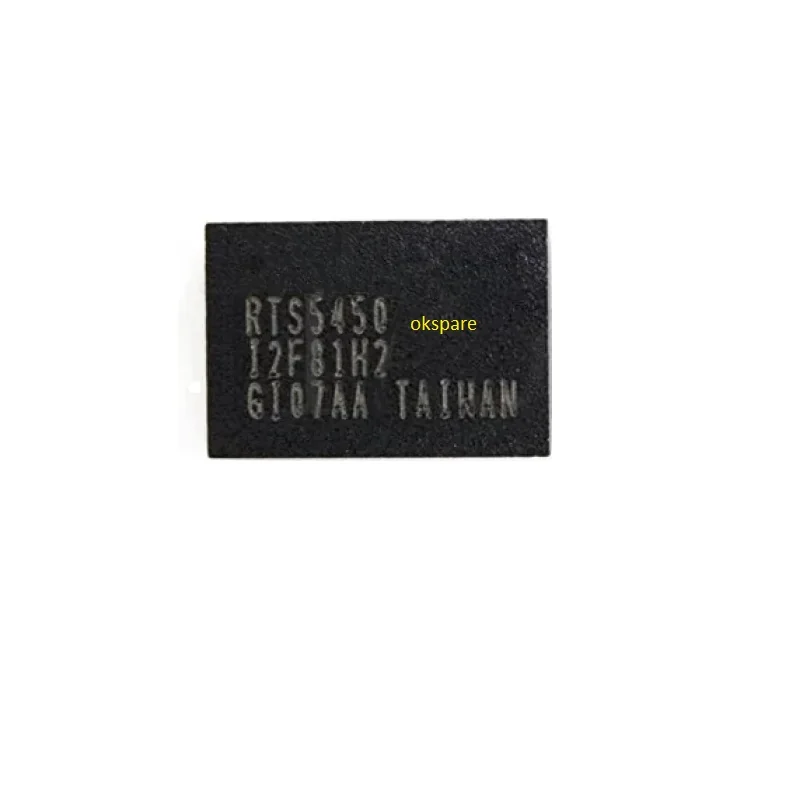

RTS5450 Realtek IC Type-C Power Delivery Controller
✓ In StockShipping: Yes
📍
Looking for a vendor nearby?
Pick your city on the right →
📍
Looking for a vendor nearby?
Scroll down to pick your city ↓
Description
Specification
A built-in 10Gbps 3:2 MUX can contribute to Type-C plug flipping and provide support for 4‑lane alternate mode (e.g. DisplayPort + USB3.X SS switching). It also provides low-speed MUX switching for SBU1/2 in alternate mode (e.g. AUX+/- of DisplayPort). These MUXs simplify the design of the monitor or PCs systems, including DisplayPort or alternate modes.
