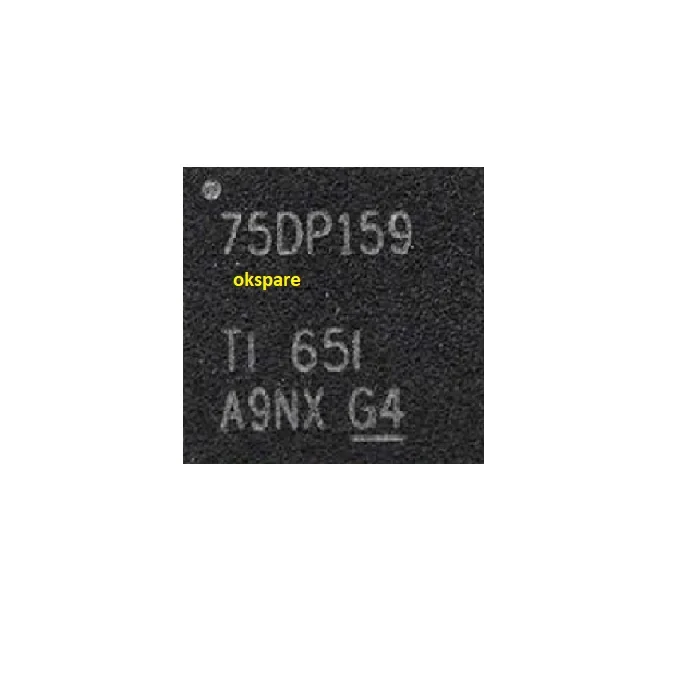

The SN75DP159 is a Texas Instruments dual-mode DisplayPort to TMDS IC used for converting DisplayPort signals to HDMI or DVI outputs. It supports HDMI 1.4b and 2.0b, enabling resolutions up to 4K × 2K at 60Hz with 8-bit color and full HD 1080p at 60Hz with deep color. The IC can work as a at lower data rates and automatically switch to a at higher speeds for improved signal integrity. With built-in equalization, jitter cleanup using CDR, and adjustable output amplitude, it is ideal for high-resolution display interfaces in laptops, adapters, and docking stations.
