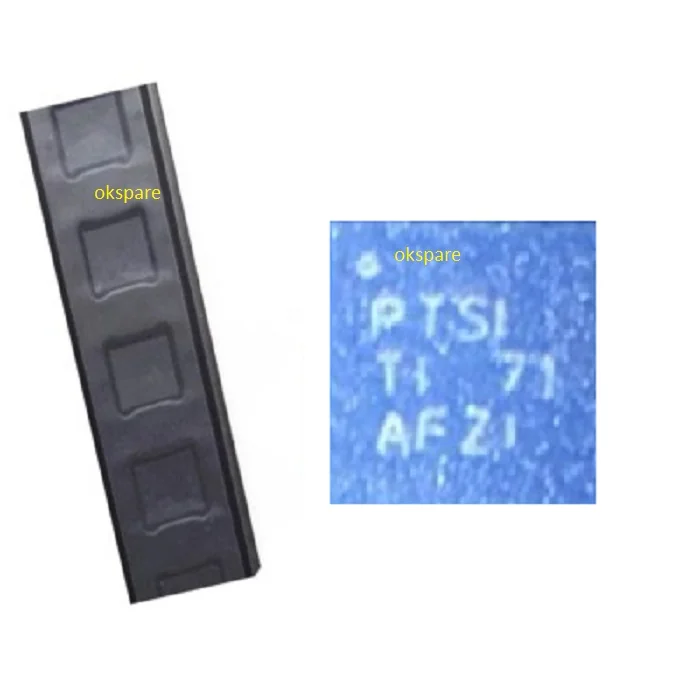

TPS62130 PTSI TPS 62130 IC QFN-16 Step-Down DC-DC Converter

📍

Looking for a vendor nearby?

Pick your city on the right →

📍

Looking for a vendor nearby?

Scroll down to pick your city ↓

Description

The TPS62130 PTSI TPS 62130 IC QFN-16 family efficiently delivers up to 3 A continuous current with output voltages between 0.9 V and 6 V. Its high switching frequency allows the use of small inductors while maintaining high efficiency. Power save mode ensures low quiescent current at light loads, while soft-start, tracking, and sequencing features enable flexible system designs. Adjustable and fixed versions are available in a compact 16-pin VQFN package, ideal for space-constrained applications.

Specification

The TPS62130 PTSI TPS 62130 IC QFN-16 family are easy-to-use, high-power-density synchronous step-down converters optimized for systems with tight space and high efficiency requirements. They use DCS-Control™ topology to achieve fast transient response, high output voltage accuracy, and efficient operation across the full load range.

Key Features:

Input Voltage: 3 V to 17 V
Output Current: Up to 3 A
Output Voltage: Adjustable 0.9 V–6 V, pin-selectable nominal or +5%
Quiescent Current: 17 µA (typical) in power-save mode
Switching Frequency: Selectable, typically 2.5 MHz
Soft Start & Tracking: Programmable start-up ramp
100% Duty Cycle Mode: Supports low-dropout operation
Protection: Short-circuit and overtemperature
Power Good Output: Open-drain indication
